# 3D Cellular Automata [WGPU/Rust]

3d Cellular Automata using WGPU in Rust running on the web.

Note: if the performance of the simulation is very bad (<5 FPS) you are likely not using hardware acceleration. I highly recommend enabling it to fully use the simulation or downloading it and running it natively.

#### Controls:

- Orbit camera : WASD or arrow keys
- Zoom in/out : Q/E
- Reset camera : space
- Pause, resetting the cells, and toggling the cross section are available at the bottom of the bar on the right
- Color setting changes take affect immediately, but changes to the simulation rule requires them to be applied

# What are cellular automata?

Cellular automata are discrete, abstract computational systems that have proved useful both as general models of complexity and as more specific representations of non-linear dynamics in a variety of scientific fields. Firstly, cellular automata are (typically) spatially and temporally discrete: they are composed of a finite or denumerable set of homogeneous, simple units, the atoms or cells. At each time unit, the cells instantiate one of a finite set of states. They evolve in parallel at discrete time steps, following state update functions or dynamical transition rules: the update of a cell state obtains by taking into account the states of cells in its local neighborhood (there are, therefore, no actions at a distance). Secondly, cellular automata are abstract: they can be specified in purely mathematical terms and physical structures can implement them. Thirdly, cellular automata are computational systems: they can compute functions and solve algorithmic problems. Despite functioning in a different way from traditional, Turing machine-like devices, cellular automata with suitable rules can emulate a universal Turing machine, and therefore compute, given Turing’s thesis, anything computable.

— Stanford Encyclopedia of Philosophy

# What does the rule mean?

There are 4 rules: survival, spawn, state, and neighborhoods. A cell can be in one of 3 states: alive, dying, or dead.

- A list or single integer
- Example: [X, Y, ...]

- If a cell is alive, it will remain alive if it has X, Y, or ... neighbors (only applies to alive cells)
- If it does not have X, Y, or ... neighbors, it will begin dying

- A list or single integer
- Example: [X, Y, ...]

- Can have any amount of overlap with survival
- If a cell is dead, it will come alive if it has X, Y, or ... neighbors (only applies to dead cells)

- Must be a single integer
- Example: X

- Once a cell begins dying, it has X simulation/update ticks to live before disappearing
- Both survival and spawn rules will no longer affect the cell while it decays (only applies to dying cells)

- "Moore" or "Von Neumann"
- How neighbors are counted (applies to all cells)
- "Moore":
- Neighbors are any cells where 1 away, including diagonals
- Think like a Rubik's cube where the current cell is the middle, all the outside/colored cubes are the neighbors
- 3^3 - 1 = 26 possible neighbors

- "Von Neumann":
- Neighbors are only cells where the faces touch
- 6 possible neighbors

# Other setting options

### Wrap neighborhood

- The cells on the edges of the simulation would have less neighbors
- If wrap neighborhood is enabled, those cells on the edges would also sample the cells on the opposite edge
- Now every cell as the exact same number of neighbors
- Allows certain moving shapes to move off the one side and continue moving from the other
- But it is a move expensive calculation, so on larger cell bounds the simulation will run a couple FPS slower

### Cell bounds

- There are (cell bounds)^3 total cells
- A higher cell bounds leads to a more complex simulation that is less like to become static, but the simulation runs faster on lower cell bounds
- Change the wrap neighborhood option to change how cells on the edge of the simulation behave

# Draw modes

### Dual Color Dying

- One color option: "Alive Color"
- Alive cells: "Alive Color"
- Dying cells: scales from white to black based on how close the cell is to dead
- Easiest to see the state/difference between alive and dead cells at the cost of your eyes

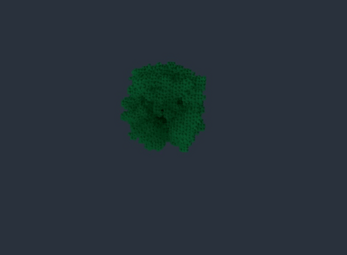

### Single Color

- One color option: "Start Color"
- Scales from "Start Color" to black based on how close the cell is to dead
- Alive cells: "Start Color"
- Basically dead cells: almost black

### Dual Color

- Two color options: "Start Color" and "End Color"
- Displays the cell's state as a scale from color from "Start Color" to "End Color"
- If the cell is "Start Color," it is fully alive
- Anything else: the cell is dying
- Closer to "Start Color" : more time to live
- Closer to "End Color" : closer to dead

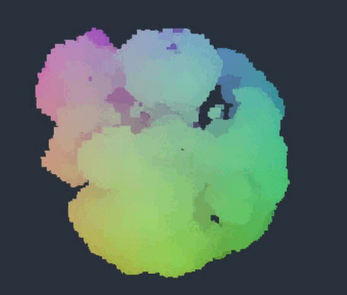

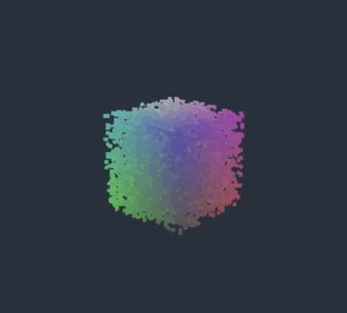

### RGB

- No color option
- Maps the cell's position (X, Y, Z) to a color
- X * k = red intensity, Y * k = green, Z * k = blue

- This draw mode makes it easier to see each cell's position because its color is directly related to its position
- At the cost of not displaying the cell's state

### Center Distance

- One color option: "Max Distance Color"
- A scale of how far each cell is from the center of the simulation from black to "Max Distance Color"
- Like RGB, it is easy to see the positions of the cells at the cost of not displaying the cell's state
- It is likely easier on the eyes than RGB, but there are cells that have the same color

### Per vertex lighting

- It is normally hard to tell the cells apart
- Unless you are using RGB draw mode, there are many cells with the same color

- Per vertex lighting add a slight darkening to the corners of the vertices of the cells
- Gives them a slight outline making it a lot easier to tell the cells apart

- But it can ruin the clean/smooth look (especially the RGB draw mode)

For more information about cellular automata, I recommend reading these:

Status | Released |

Category | Tool |

Platforms | Windows, macOS, Linux, Android, HTML5 |

Author | LelsersLasers |

Made with | Rust |

Tags | 3D, automata, Automation, cellular, rust, wgpu |

Code license | MIT License |

Average session | A few minutes |

Languages | English |

Inputs | Keyboard, Mouse, Touchscreen, Smartphone |

Accessibility | Color-blind friendly, High-contrast, One button, Textless |

Links | Source code, YouTube |
